Description

Description:

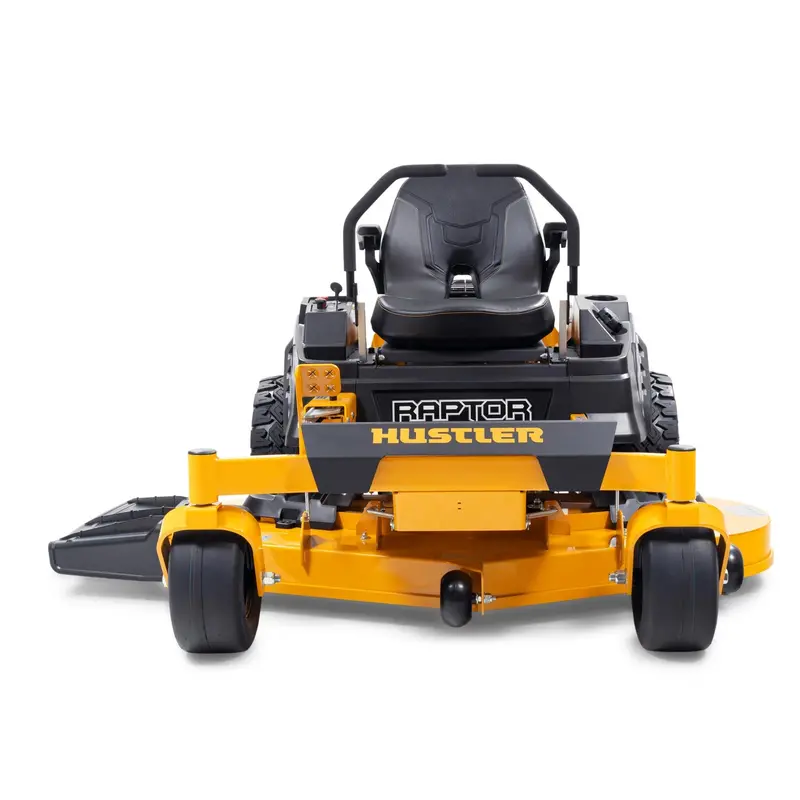

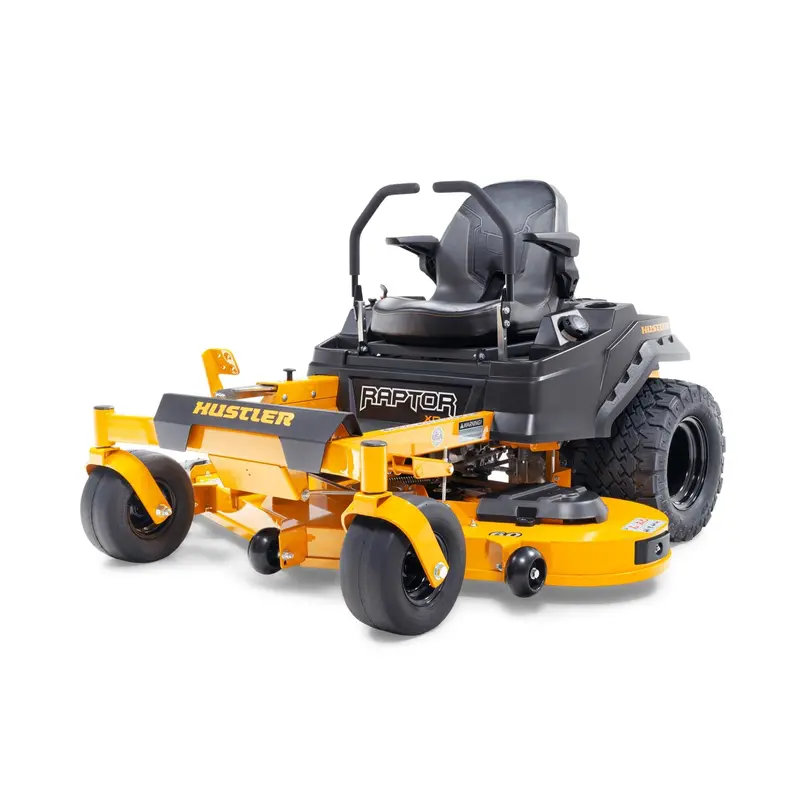

The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features

• Welded Steel Deck:
• Description: Constructed from welded fabricated steel
• Benefits: Enhances durability and extends the mower’s lifespan
• Wider Stance:
• Description: Designed to provide ample room for the operator
• Benefits: Increases comfort and stability
• SmoothTrak Steering:
• Description: Precision steering system
• Benefits: Facilitates easy trimming and maneuvering around obstacles
• Bolstered Seat:
• Description: Equipped with armrests and airflow to the back
• Benefits: Ensures a comfortable ride for the operator
• Rubber Floor Mat:
• Description: Standard on all Raptor models
• Benefits: Minimizes vibration and increases comfort for the operator’s feet
• Fabricated Frame:
• Description: Continuous one-piece 1½ inch by 3 inch welded tubular frame
• Benefits: Provides robust structural integrity
• Foot-Operated Deck Lift:
• Description: Allows for easy deck height adjustments
• Height Range: 1.5 inches to 4.5 inches
• Easy to Service:
• Description: Features flip-up seat pan, removable floor pan, and vented pulley covers
• Benefits: Simplifies maintenance and servicing
• Exclusive BigBite Rear Tires:
• Description: Custom-designed in collaboration with the tire manufacturer
• Benefits: Enhanced traction and stability
• Kawasaki® Power:
• Description: Powered by a V-Twin Kawasaki® Engine
• Benefits: Delivers reliable and powerful performance

Specifications:

Mower Deck:

• Width: 48 inches
• Cutting Height: 1.5 inches to 4.5 inches
• Grass Catcher: Non-powered, 2-bag, 5.4 bushel
• Dimensions (L x W x H): 91.4 inches x 63.5 inches

Engine:

• Model: Kawasaki FR651
• Power: 21.5 HP
• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Transmission:

• Type: Dual Hydrostatic
• Model: Hydro-Gear ZT-2800®
• Capacity: 3 gallons
• Speed: Up to 7.5 mph
• Steering: Integrated with steering levers
• Warranty: 3 Year Warranty

Wheels:

• Front Tires: 13 x 6.5
• Rear Tires: 20 x 8-10 BigBite™

Operator Comfort:

• Seat: Bolstered high-back seat with armrests and built-in lumbar support

Dimensions & Weight:

• Length: 69.3 inches
• Width: 42 inches
• Height: 52.5 inches
• Weight: 627 lbs

Additional Information:

• Residential Warranty: 3 Year / 300 hour

table { width: 100%; border-collapse: collapse; text-align: center; border: 1px solid black } td, th { border: 1px solid #dddddd; padding: 8px; }

Width	Weight	Height	Length
42 Inch	627 Pounds	52.5 Inch	69.3 Inch
