Description
THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

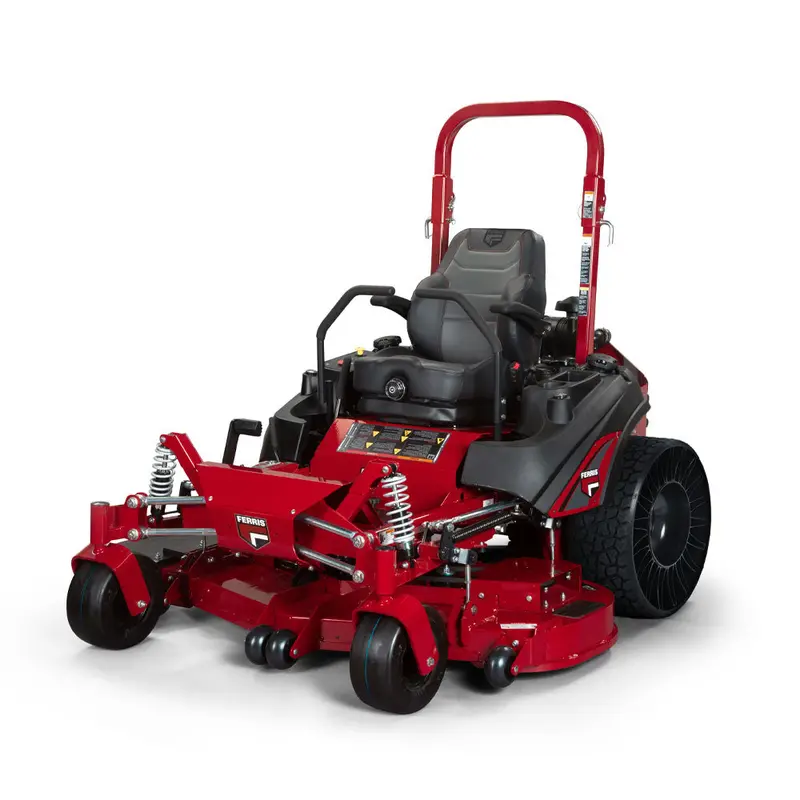

Featuring next generation suspension technology – ForeFront™ Suspension, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system, and travel speeds up to 19.3 kph. Now with EFI-ETC technology for fuel savings, easy starting, and smooth, consistent productivity.
Part Number5902068Engine BrandVanguard® BIG BLOCK™ EFI with Oil Guard™ and Electronic Throttle ControlEngine Power Rating (HP) *40Displacement (cc)993PTOElectricCylinders2StarterElectricFuel Tank Capacity (litres)41.6Cutting Width in(cm)60 (152)Cutting Height in(cm)1.5 – 5 (38 – 127)SpindlesHercules™ II cast-ironDeck ConstructioniCD™+ Cutting System, 2-BeltDeck Discharge TypeSide DischargeSuspensionForeFront™ Suspension System – Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.TransmissionDual-commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9″ cooling fansDrive Axles (in)1.375Caster Tyres (in)13 x 6.5 – 6Drive Tyres (in)26 x 12-12Ground Speed-Fwd (kph)0 – 19.3Ground Speed-Rev (kph)0 – 8.1Overall Length (mm)2147Overall Width (mm) Deflector Down / Up1880 / 1651Dry Weight (kg)742Seat PackagePremium high-back suspension seat with arm rests, adjustable lumbar and back reclineInstrumentationDual-function hour meter, fuel level gauge in each tankROPS165° foldableControls / Safety GroupSeat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controlsParking Brake / Safety CircuitHand operated internal transaxle brakeWarranty (Engine) †3-Year limited manufacturer’s warrantyWarranty (Balance of Machine) †4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
We reserve the right to change specifications, features and pricing without notice. Products may vary from images shown.
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
