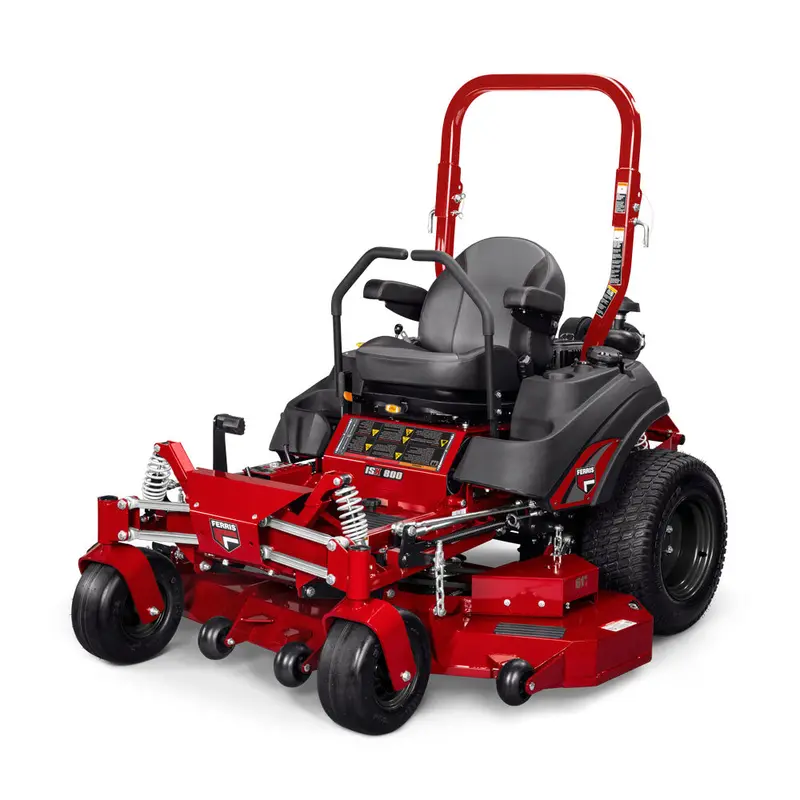

Isx™ 800 Entry-Level Zero-Turn Mower – 61-Inch Deck

Description

LANDSCAPER’S LEVERAGE

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear^® drive system and travel speeds up to 16 kph, the ISX™ 800 is engineered to increase efficiency and operator comfort.

Part Number5902038Engine BrandBriggs & Stratton^® CXi Series EFI-ETCEngine Power Rating (HP) *27Displacement (cc)810PTOElectricCylinders2StarterElectricFuel Tank Capacity (litres)20.8Cutting Width in(cm)61 (155)Cutting Height in(cm)1.5 – 5 (38 – 127)SpindlesAluminium GreaseableDeck ConstructioniCD™ Cutting System, 2-beltSuspensionForeFront™ Suspension System – Front independent with four cast-iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocksTransmissionDual commercial Hydro-Gear^® ZT-3400^® transaxles with 7″ cooling fansDrive Axles (in)1.125Caster Tyres (in)13 x 6.5 – 6Drive Tyres (in)23 x 10.5 – 12Ground Speed-Fwd (kph)0 – 16.1Ground Speed-Rev (kph)0 – 8.1Overall Length (mm)2108Overall Width (mm) Deflector Down / Up1905 / 1613Dry Weight (kg)543Seat PackagePremium mid back adjustable suspension seat with armrestsInstrumentationDual-function hour meter, fuel level gauge in tankROPS180° foldableControls / Safety GroupSeat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controlsParking Brake / Safety CircuitHand operated internal transaxle brakeWarranty (Engine) †3-Year limited manufacturer’s warrantyWarranty (Balance of Machine) †4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

<sub>We reserve the right to change specifications, features and pricing without notice. Products may vary from images shown.
* Power levels rated by engine manufacturer.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.</sub>
